Product Description
Overview

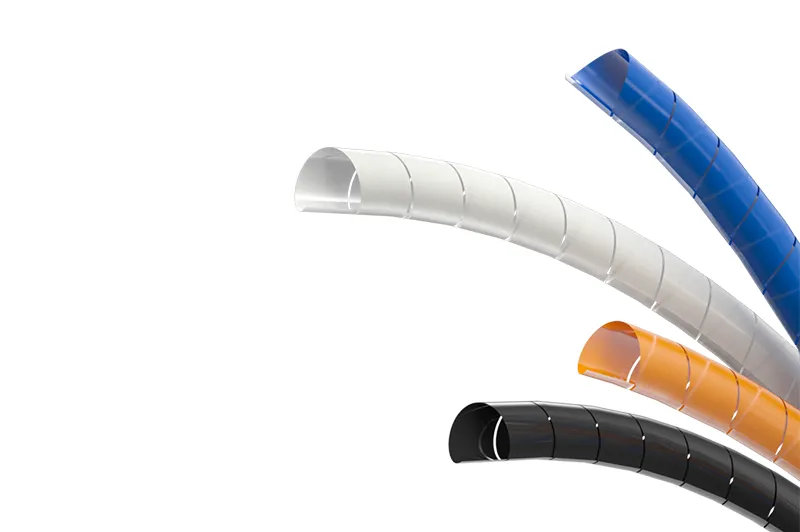

Spiral Wrapping Bands are crafted from durable PE material, designed for securing electric wires effectively. They are applied by initially fastening one end with a safety belt and then wrapping the bands clockwise around the wires. This method ensures a tight fit, offering both insulation and a tidy appearance. Ideal for protecting and organizing electric wires, Spiral Wrapping Bands enhance safety by preventing wire damage and maintaining a neat, organized aesthetic.
Spiral wrapping bands are perfect for organizing and protecting your wiring and cables. It helps eliminate accidents that can be caused by loose cords and provides a neat appearance for any entertainment system or office setting. The spiral wrapping band not only protects cables from abrasion, but allows breakouts of single or multiple cables for re-routing or replacement.
Features
Spiral Wrapping Band provides superior abrasion resistance and additional rigidity for bundling and protection of electrical cables and wires.
The spiral structure provides cable can branch out at any point and in any direction.
·Material: made from PE.
·Usage: fix one end with safety belt first, then circle the wires clockwise to make them tighen.
· Application: a protection wear for electric wires, and make them insulation and look nice.

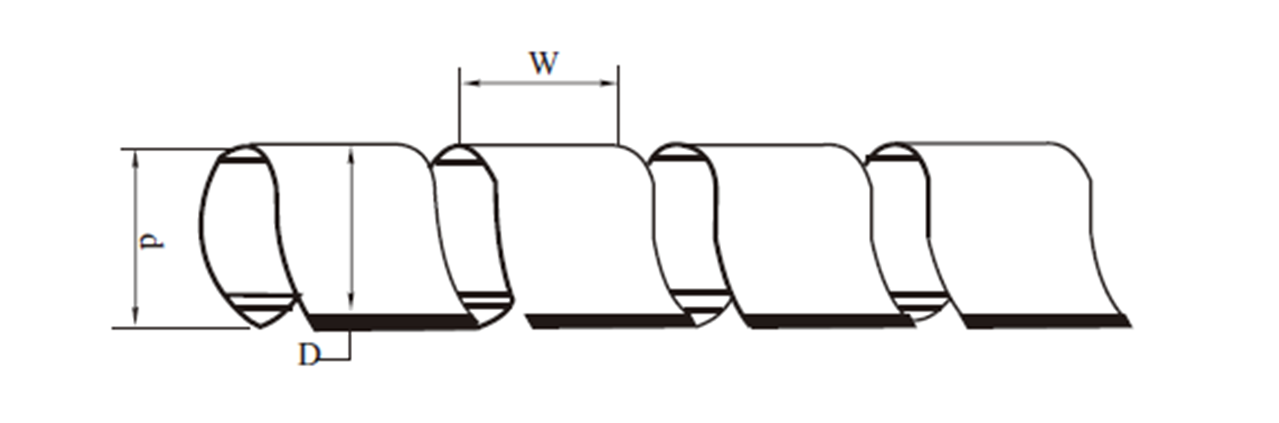

Technical Parameters
Item.no | Inner diameter | Outer diameter | Pitch | Wrapping Range | Packing |
mm | mm | mm | Inch | M/ROLL | |
SWB-04 | 2.5 | 4 | 4.5 | 2×20 | 25 |
SWB-06 | 4 | 6 | 7 | 4×50 | 15 |
SWB-08 | 6 | 8 | 10.8 | 6×50 | 12 |
SWB-10 | 7.5 | 10 | 11.4 | 7.5×60 | 9 |
SWB-12 | 9 | 12 | 13.9 | 9×65 | 7 |
SWB-14 | 11 | 14 | 14.5 | 12.5×60 | 6 |
SWB-16 | 13 | 16 | 16 | 13×85 | 5 |
SWB-18 | 14 | 18 | 17 | 14×90 | 4 |
SWB-20 | 17 | 20 | 18.5 | 16×105 | 3 |
SWB-24 | 20 | 24 | 19.6 | 20×130 | 2.5 |
SWB-26 | 22 | 26 | 20 | 22×135 | 2.5 |
SWB-28 | 24 | 28 | 28 | 24×140 | 1.5 |
SWB-30 | 26 | 30 | 43 | 26×150 | 1.5 |
SWB-50 | 45 | 50 | 62 | 45×200 | 0.5 |
Zhonggu Plastic offers a variety of Cable Ties, please contact us! We will provide you with complete product details!
