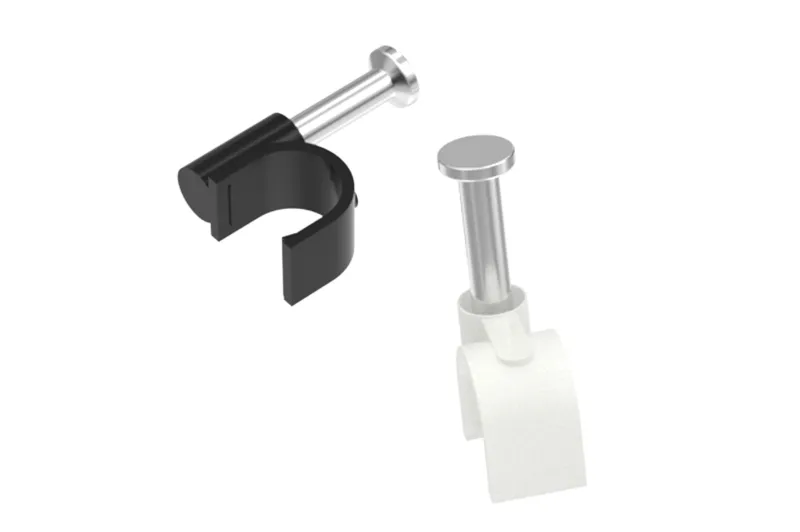

Product Description
Overview
· PE(white, grey), high elasticity, impact resistance.
· Inserting type, nail attached in clips.Save time and cost.
Technical Parameters
Circle Cable Clips are widely used across industries in managing cables and wires by firmly securing them to a surface such as a wall, floor or ceiling.Circle Cable Clips are readily available in all sizes in white colour and black. Other colours can be manufactured against orders. Circle cable clips, also known as circular cable clips or cable ties, are commonly used to manage and secure cables or wires in various settings. They are often made of plastic or metal and come in different sizes and materials depending on the application.
Circular Design: The shape allows for a snug fit around cables, providing secure retention.
Materials: Typically made from durable materials like nylon or stainless steel, which offer resistance to corrosion and wear.
Adjustable: Some models are adjustable, allowing you to tighten or loosen the clip as needed.
Ease of Use: They are usually easy to install and remove, making them convenient for temporary or permanent installations.
Weather Resistance: Many clips are designed to withstand outdoor conditions, making them suitable for use in harsh environments.
Automotive Industry: Securing wiring harnesses and cables under the hood or within the vehicle.
Electrical Installations: Managing wires and cables in residential and commercial buildings.
Telecommunications: Organizing and securing cables in data centers and telecom rooms.
Industrial Settings: Securing cables and hoses in factories and industrial machinery.
Marine and Outdoor Use: Resistant to saltwater and UV rays, suitable for boats and outdoor installations.
Aviation: Securing cables and wires in aircraft interiors and exteriors.
Medical Equipment: Managing cables and wires in medical devices and hospital settings.
Item.no | High | Diameter | Nail |
mm | mm | mm | |
ZGS-CC3 | 4 | 3 | 1.7×15 |
ZGS-CC4 | 4.8 | 4 | 1.7×15 |
ZGS-CC5 | 5.6 | 5 | 1.7×15 |
ZGS-CC6 | 7.9 | 6 | 1.8×16 |
ZGS-CC7 | 9.2 | 7 | 1.8×18 |
ZGS-CC8 | 9.7 | 8 | 1.9×19 |
ZGS-CC9 | 10.9 | 9 | 2.0×20 |
ZGS-CC10 | 12.4 | 10 | 2.0×22 |
ZGS-CC12 | 14.8 | 12 | 2.0×25 |
ZGS-CC14 | 17.6 | 14 | 2.3×30 |
ZGS-CC16 | 18 | 16 | 2.3×30 |
ZGS-CC18 | 19 | 18 | 2.5×38 |
ZGS-CC20 | 22 | 20 | 2.5×38 |
ZGS-CC22 | 25 | 22 | 2.8×40 |
ZGS-CC25 | 27.3 | 25 | 2.8×40 |
ZGS-CC30(Double Nail) | 33 | 30 | 3.0×52 |
ZGS-CC32 (Double Nail) | 35 | 32 | 3.0×52 |
ZGS-CC35(Double Nail) | 36.6 | 35 | 3.0×57 |
ZGS-CC40(Double Nail) | 45.2 | 40 | 3.0×60 |
ZGS-CC50 (Double Nail) | 54 | 50 | 3.5×75 |
