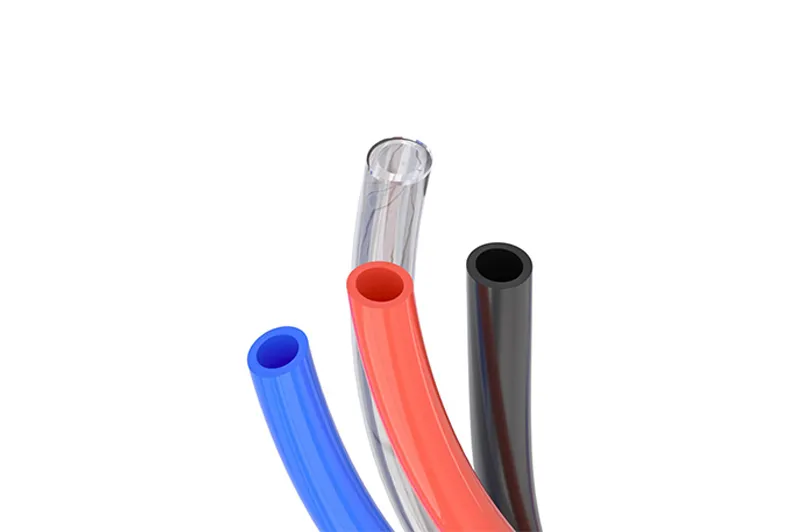

Air PU Hose

Blue
Black
White
Orange

Labels:

Wiring Accessories

Product Description

Overview

·Colours: custom colours, red, blue, black, transparent

·Material: Polyurethane TPU

·Hardness: 95A~98A

·Applicable temperature: -20~60℃

·Abrasion resistance: 35MG

·Instant burst pressure: 36kg (3.6MPA)

·Tear strength: 110KG/CM2

Air PU Hose

Technical Parameters

Item.no	Outer diameter	Inner diameter	Length	Min. bend radius	Work stress
Item.no	mm	mm	mm	mm	MPA
3	3	2	200	10	0-10
4	4	2.5	200	10	0-10
6	6	4	200	15	0-10
8-5.5	8	5.5	100	20	0-10
8-6	8	5	100	20	0-10
8-7	8	6	100	20	0-10
10	10	6.5	100	30	0-10
12	12	8	100	35	0-10
14	14	10	100	55	0-10
16	16	21	100	65	0-10

PU Air Hose Advantages:

High flexibility:

PU air hose has excellent flexibility, adapts to various complex installation environments, and is easy to install and use.

Small bending radius:

The hose is designed with a small radius bend, which is suitable for bending and installation in limited space, improving the flexibility and efficiency of pipeline layout.

Wide application:

It is widely used in a variety of application scenarios, such as industry, automobiles, construction and other fields, to meet the gas transmission needs of different industries.

Excellent wear resistance:

The hose has excellent wear resistance and can be used for a long time in harsh conditions without damage, extending its service life.

High tensile strength:

It has high-strength tensile properties to ensure stable and safe gas transmission under high pressure.

Low-temperature flexibility:

It remains soft and elastic in low-temperature environments, is not easy to harden or crack, and is suitable for applications in cold climates.

PU air hose has become an indispensable gas transmission solution in various industrial applications through its excellent flexibility, wear resistance, strength and adaptability.Welcome your consultation!
