What Are R-type Cable Clamps and How to Use Them?

In the world of cable management, keeping wires organized and secure is essential. One of the most effective tools for this job is the R-type cable clamp. These small yet mighty clamps play a critical role in ensuring that your cables are not just managed but also protected from damage. In this article, we’ll dive into what R-type cable clamps are, their applications, and how to use them effectively.

What Are R-type Cable Clamps?

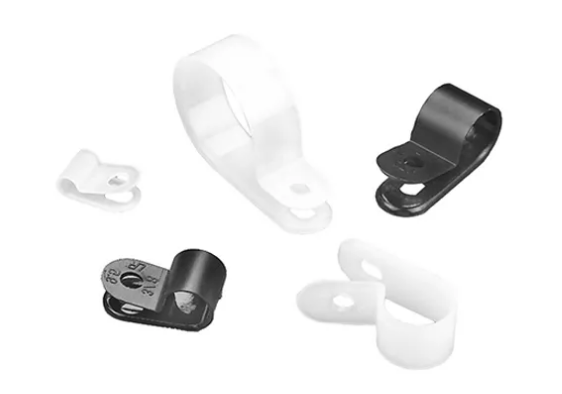

R-type cable clamps, often referred to as R-clamps, are simple yet versatile components used for securing cables, wires, and tubing in place. Nylon cable clamps are mechanical devices or clips that define a route for one or more cables along a building wall or within the instrumentation, control or another type of electrical enclosure.They are named for their "R" shape, which is designed to wrap around the cable and fasten it securely to a surface.

Materials and Construction

R-type cable clamps are typically made from durable materials such as nylon, plastic, or metal. The choice of material often depends on the application—nylon or plastic for lightweight, general-purpose use, and metal for heavy-duty or outdoor applications.

Sizes and Variants

These clamps come in various sizes to accommodate different cable diameters. The most common sizes range from 1/8 inch to 2 inches. Some variants even include features like adhesive backing or mounting holes to suit specific needs.

Why Use R-type Cable Clamps?

Cable Management

The primary purpose of R-type cable clamps is to manage cables efficiently. They prevent cables from tangling, sagging, or becoming a tripping hazard. This is particularly important in environments with a large number of cables, such as data centers or automotive applications.

Protection Against Damage

By securing cables in place, R-type clamps protect them from wear and tear. Cables that are left loose can rub against surfaces, leading to abrasion and eventual damage. Properly clamped cables are less likely to suffer from such issues.

Aesthetics and Organization

In addition to functionality, R-type cable clamps also contribute to a neat and organized appearance. Whether in a professional setting or a home project, using these clamps helps maintain a clean and professional look.

How to Use R-type Cable Clamps

Step 1: Select the Right Size

Choosing the correct size of the R-type cable clamp is crucial. The clamp should fit snugly around the cable without pinching or compressing it. Measure the diameter of your cable and select a clamp size that matches.

Step 2: Position the Clamp

Once you have the right size, position the clamp around the cable at the desired location. Ensure that the cable is not twisted or kinked when placing the clamp.

Step 3: Secure the Clamp

Depending on the type of R-clamp, you may need to use screws, nails, or adhesive to secure it in place. For screw-in clamps, use the appropriate size of screws and drive them through the mounting hole into the surface. Ensure that the clamp is firmly attached and that the cable is secure.

Step 4: Test the Installation

After securing the clamp, gently tug on the cable to make sure it’s firmly held in place. The clamp should not shift or loosen. If it does, re-tighten the screws or adjust the clamp as needed.

Applications of R-type Cable Clamps

Automotive Industry

In the automotive industry, R-type cable clamps are used to secure wiring harnesses, brake lines, and fuel lines. Their durability and ease of installation make them ideal for these critical applications.

Home and Office Use

For home and office setups, R-type clamps help in organizing computer cables, TV wiring, and other electronic setups. They are also useful in securing cables along walls, under desks, or behind appliances.

Industrial Settings

In industrial environments, where heavy machinery and equipment are in use, R-type clamps are essential for managing power cables, pneumatic tubes, and hydraulic lines.

Conclusion

R-type cable clamps are indispensable tools in cable management, offering a simple yet effective solution for securing and organizing cables in various settings. Whether you’re working on a home project, an automotive repair, or an industrial installation, these clamps provide the stability and protection your cables need.
