Stainless Steel Cable Ties – How to Use Them and How to Tighten Them

What Is a Stainless Steel Cable Tie?

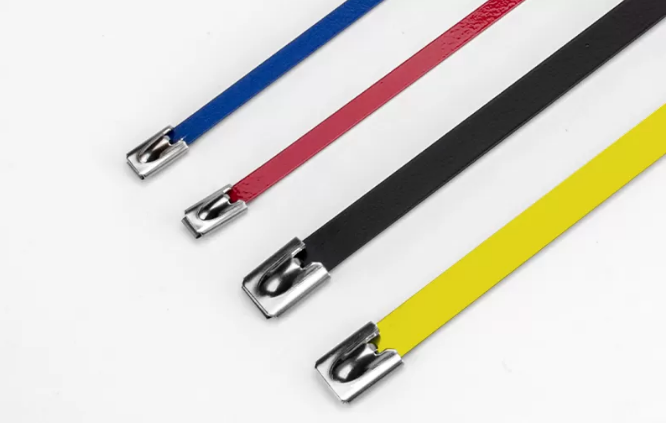

Performing the identical function as nylon 6/6 cable ties, stainless steel cable ties are crafted from marine-grade 316 stainless steel. This makes them exceptionally well-suited for applications requiring resistance to weather, corrosion, and chemicals. Stainless steel cable ties offer a wide working temperature range (-80°C to +538°C) and unequalled strength (up to 160kg, depending on the size of tie) and so are used where strength and fire resistance is needed. Stainless steel cable ties are also available with an epoxy resin coating or a PVC coating, ideal for use with galvanised steel, where strength and reduced abrasion are necessary.

When to Use Stainless Steel Cable Ties

Stainless steel and coated stainless steel cable ties find application in bundling various cables, wires, and heavy assemblies under harsh temperatures and the most challenging environmental conditions. They are employed in diverse domestic and commercial settings, including but not limited to the automotive, electronics, and transportation industries.

How to Use Stainless Steel Cable Ties

In contrast to nylon cable ties with a ridged surface for a locking barb, stainless steel cable ties have a completely smooth texture, making them challenging to grip. These metal ties feature a self-locking roller ball mechanism, reducing the strength needed during fastening. While they can be manually installed, achieving the required tightness might be challenging. In such instances, a pair of pliers can be employed to pull and secure the tie end.

Stainless Steel Cable Tie Tension Tools

Due to their metal composition, stainless steel cable ties are not easily cut with scissors. While tin snips or pliers may suffice for occasional individual ties, it is advisable to use a specialized stainless steel cable tie tool for installation. These tools are designed to automatically adjust the tension of the cable tie and simultaneously trim off the excess.

Choosing the Right Stainless Steel Cable Tie

Before delving into the application and tightening process, it's crucial to select the right stainless steel cable tie for your specific needs. Various factors such as size, strength, and environmental conditions should be considered.

1. Size Matters

Selecting the appropriate size is paramount. Cable ties come in various lengths and widths, so choose one that accommodates the diameter of the cables or objects you intend to secure. Ensure that the tie is neither too loose nor too tight.

2. Strength and Material

Stainless steel cable ties are available in different grades, each with its own tensile strength. Consider the weight and tension the tie will endure. Opt for higher tensile strength for heavier loads. Additionally, ensure the tie is made from high-quality stainless steel to guarantee corrosion resistance.

3. Environmental Conditions

Assess the environmental conditions where the cable ties will be used. If exposure to extreme temperatures, chemicals, or UV radiation is anticipated, choose cable ties designed to withstand such conditions. This ensures longevity and reliability in challenging environments.

How to Tighten Stainless Steel Cable Ties Effectively

Tightening stainless steel cable ties properly is essential for a secure and reliable hold. Here are some tips on tightening these ties effectively:

1. Use a Suitable Tool

While hand-tightening is possible for smaller ties, larger and heavier-duty ties may require a tool for optimal tension. Cable tie tensioning tools ensure consistent tightness and prevent over-tightening.

2. Apply Even Pressure

When using a tool, apply even pressure to avoid uneven tension along the length of the cable tie. This ensures a secure hold without causing damage to the cables or the tie itself.

3. Check for Adequate Tightness

After tightening, assess the tension by gently tugging on the cables. If the cables remain securely in place without excessive movement, the tie is adequately tightened. However, be cautious not to pull too hard, as this may compromise the integrity of the cables or the tie.

Conclusion: Ensuring Longevity and Reliability

In conclusion, stainless steel cable ties are versatile and reliable solutions for cable management. Choosing the right tie for your specific needs and applying them correctly ensures longevity and reliability. Proper tensioning is crucial, and using appropriate tools can make the process more efficient and effective.
